Bank management

The LIOBOX² can handle a pad banking system.

Each bank reflects a unique 4-pad configuration. It is possible to have up to four banks of pads. It is therefore possible to assign up to 48 features per mode (4 pads × 4 banks × 3 events per pad).

The active bank is displayed on the Play screen.

  • A short press of the BANK SELECTION pad from the MAIN screen iterates through the banks.
  • A long press locks the current bank.
Bank lockedBank unlocked

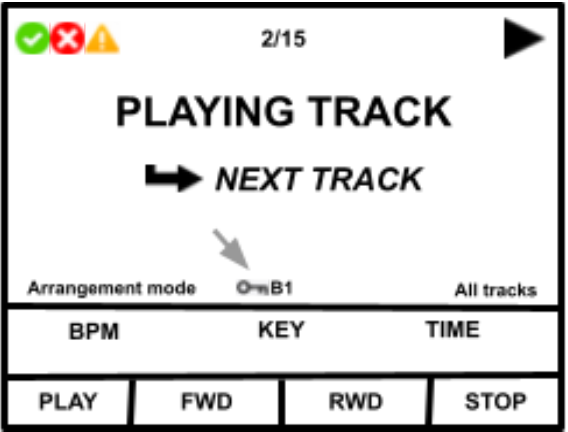

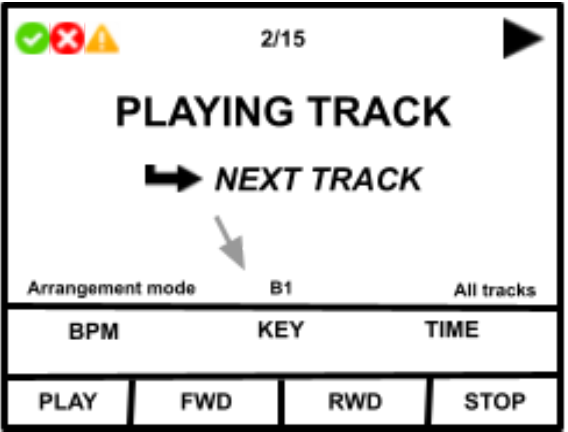

Play screen with the bank lock iconPlay screen without the bank lock icon

Bank lock number​

It is also possible to limit the number of banks (to avoid navigating through empty banks).

Go to MENU → SETTINGS → BANK LOCK NUMBER, select the maximum pad bank number by rotating the knob. Confirm by pressing the knob.

Lock bank number screen: max pad bank number 3/4

The bank lock and bank number can also be set from the GoorooLink.
