Connection status

The LIOBOX² works with a DAW thanks to a script, or through the GoorooLink that loads with the session.

When two computers are used in redundancy, load the Spare script on the second computer, depending on your software version.

When the script is loaded in the Ableton, Bitwig or Reaper preferences, the LIOBOX² transmits and reads MIDI information from the main computer. The same behavior is reproduced when using the GoorooLink with Pro Tools, Logic Pro, Cubase or QLab.

Depending on the state of the connection, the LIOBOX² displays the communication link status as a visual confirmation:

Green check mark and red cross icons

Script loaded, communication active	DAW not started, script not loaded
Green check mark	Red cross

In case of redundancy, the status of each connection is displayed (Main first, then Spare):

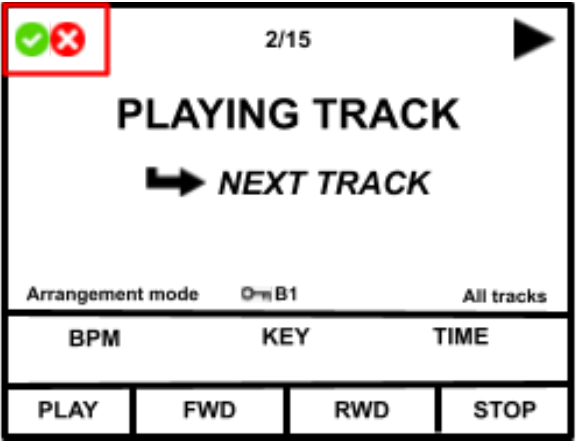

Connection status of both computers on the LIOBOX² screen
