LIOBASE
The LIOBASE is a rigid steel case with a custom magnet that holds the LIOBOX². Use it to attach the LIOBOX² anywhere on stage, on a drum arm or on a stage stand, next to your other accessories.
Description
- Steel plate: 1 mm (0.04 in) thick.
- Magnet: a strong magnet for holding the LIOBOX².
- Mounting holes: compatible with drum accessories (e.g. ROLAND MDP7) or microphone stands (e.g. VESA K&M 19685).

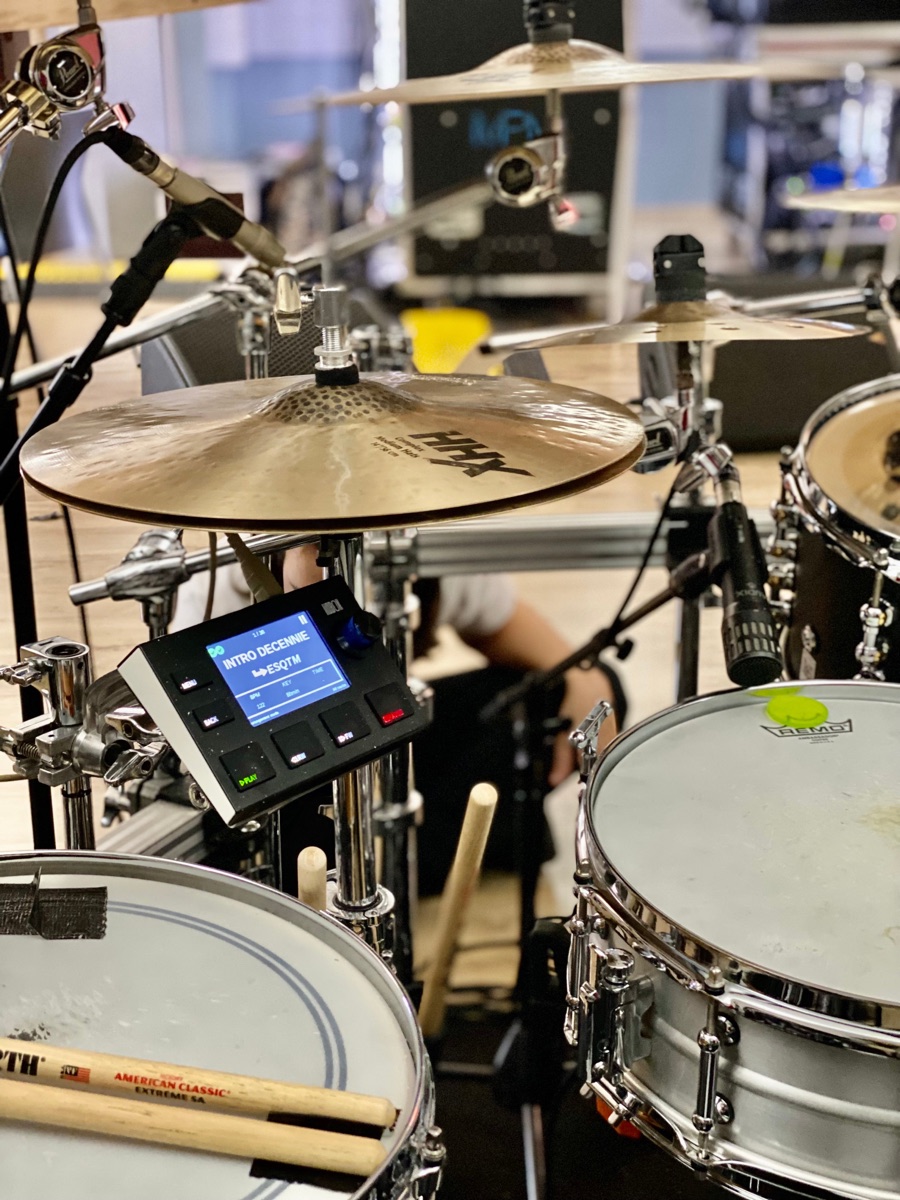

| LIOBOX² on a drum kit | |
|---|---|
 |  |
Specifications
| Item | Description |
|---|---|
| Material | Steel, 1.01 mm (0.04 in) plate |
| Dimensions | 14.9 × 10.4 × 1.1 cm (5.9 × 4.1 × 0.47 in) |

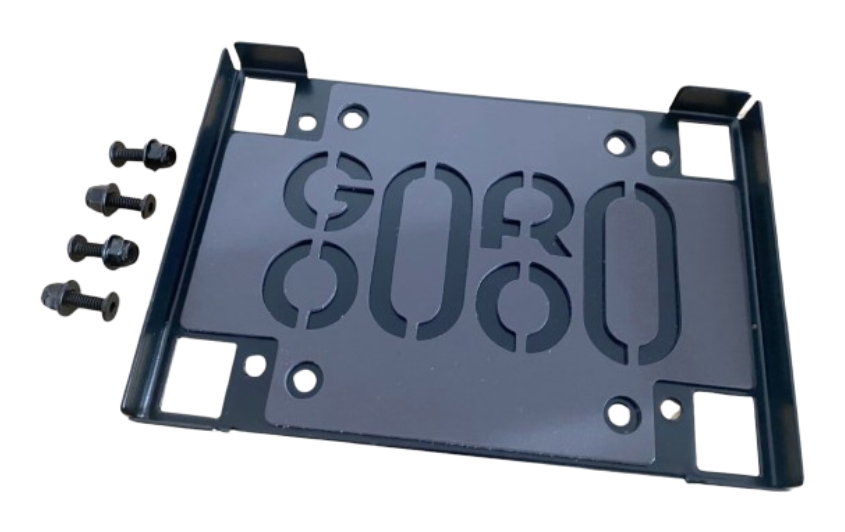

Package contents
- 1 LIOBASE
- 4 M4 × 12 mm (0.47 in) flat head black screws
- 4 M4 black self-locking nuts
note
The drum or stand accessory is not included.
Compatible mounts
The LIOBASE is designed to be compatible with drump and microphone mounts. Example reference:
- the Roland MDP-7 drum accessory
- the K&M 19685 VESA holder

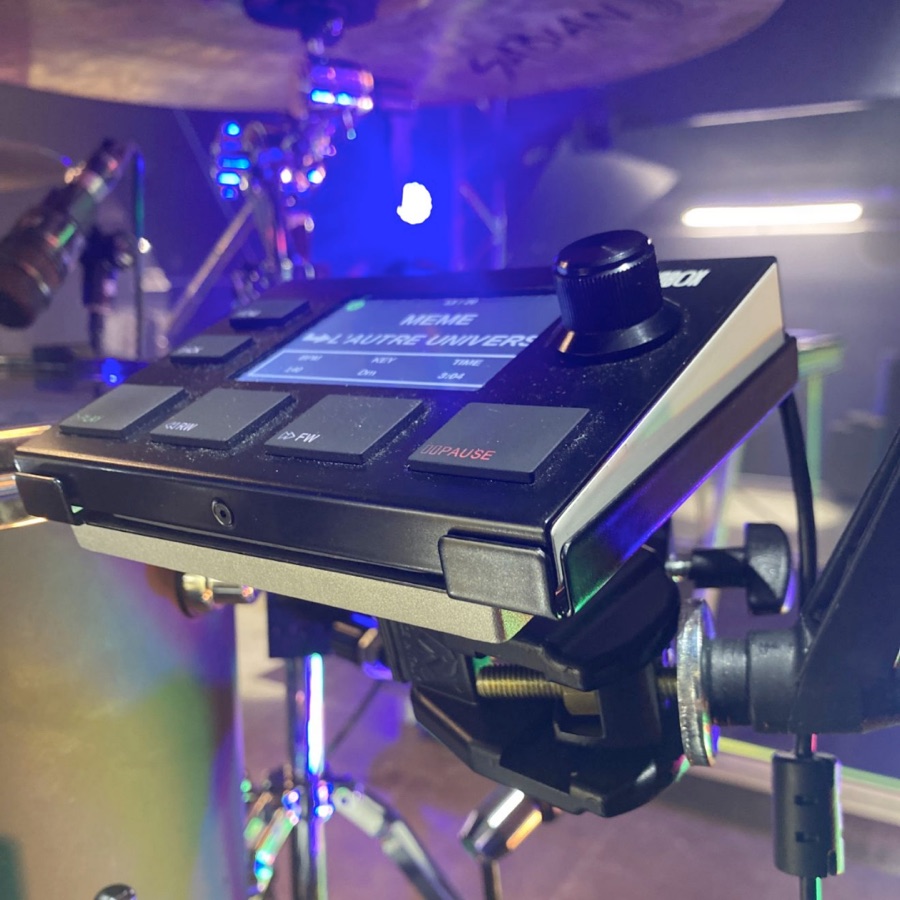

Installation
- Screw the LIOBASE onto the mount with the four M4 screws and self-locking nuts provided.
- Attach the mount to the drum arm or stand, and tighten it.
- Place the LIOBOX² on the LIOBASE: the magnet holds it in place.
